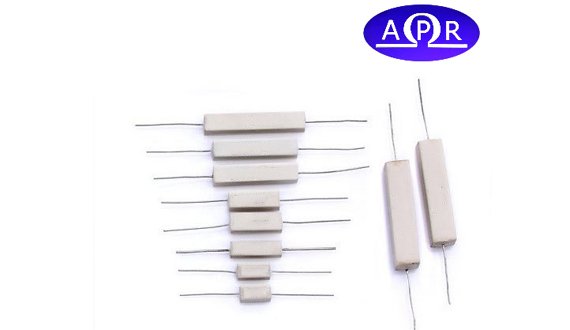

CERAMIC ENCASED AXIAL LEAD TYPE WIRE WOUND RESISTOR- E CE

E-CE, Resistive wire we wound on ceramic rod tinned copper leads work as terminal which is connected to winding by spot welded caps. This resistors then inserted into ceramic square tubes or porcelain enclosure. Ceramic tubes & porcelain are not flammable hence property of resistors becomes non-flammable .

Features :

  • High Surface Insulation Propertiese
  • High Temperature Ceramic Filler with Flame Proof Property
  • Exceptional Stability And Performance
  • Law Temperature Coefficient
  • Different Diameter Leads Also Available On Request
  • Available In Non-Inductive Style With Aryton perry Winding For Lowest Reactive Components
TYPE WATT RANGE TUBE SIZE LEAD(MM)
E-CE 3W 0.01E-5K 7X7X16 0.8X36
E-CE 5-6W 0.01E-5K 9X9X25 0.8X36
E-CE 7-10W 0.01E-6K 9X9X38 0.8X36
E-CE 11-15W 0.01E-10K 9X9X50 0.8X36
E-CE 20W 0.01E-15K 12X12X50 0.8X36
HIGHER SIZES AVAILABLE ON REQUEST

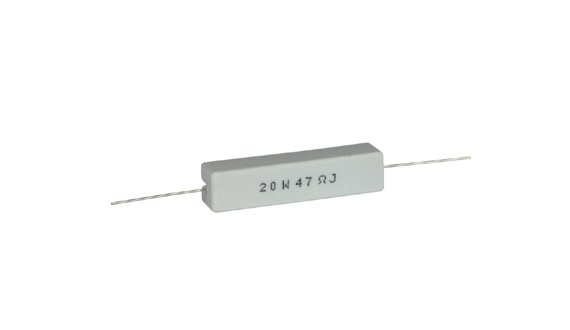

CERAMIC BOAT TYPE AXIAL LEAD TYPE W WIRE WOUND RESISTOR- E BOAT

TYPE WATT RANGE
E-BOAT 4W 0.01E-5K B-4
E-BOAT 5W-6W 0.01E-5K B-6
E-BOAT 7W-10W 0.01E-6K B-10
E-BOAT 12W-15W 12W-15W B-12
E-BOAT 20W 0.01E-15K B-20
HIGHER SIZES AVAILABLE ON REQUEST

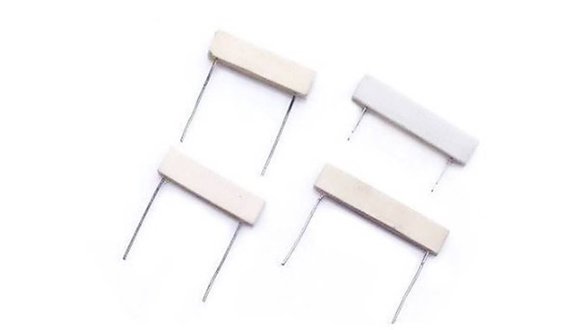

CERAMIC BOAT TYPE RADIAL TAG TYPE WIRE WOUND RESISTOR- E BOAT-R

TYPE WATT RANGE TUBE(MM)
E-BOAT R 4W 0.01E-5K B-4
E-BOAT R 5W-6W 0.01E-5K B-6
E-BOAT R 7W-10W 0.01E-6K B-10
E-BOAT R 12W-15W 12W-15W B-12
E-BOAT R 20W 0.01E-15K B-20
HIGHER SIZES AVAILABLE ON REQUEST

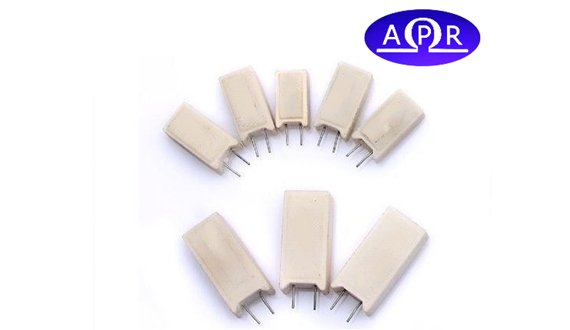

CERAMIC BOAT ( M) VERTICAL MOUNTING WIRE WOUND RESISTOR- E BOAT-M

TYPE WATT RANGE TUBE(MM)
E-BOAT M 3W 0.01E-5K M3
E-BOAT M 5W 0.01E-5K M5
E-BOAT M 7W 0.01E-6K M7
E-BOAT M 10W 0.01E-10K M10
E-BOAT M 20W 0.01E-10K M20
HIGHER SIZES AVAILABLE ON REQUEST
