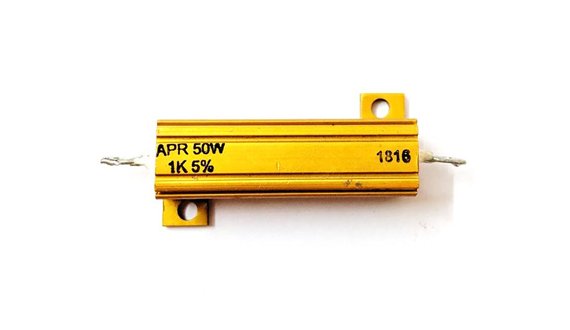

ALUMINIUM HOUSED AXIAL LEAD WIRE WIRE WOUND RESISTOR- E AE

E-AE This resistors are specially design for small size high power requirement which are mainly use in electronic power circuit. Ceramic rod having good amount of alumina are wound with resistance wire are then inserted in aluminium housing. Tinned copper is used for termination which welded to cap pressed on ceramic rod. Resistance wire get welded on cap all together become a welded construction which has best durability. Best quality mica is use for insulation.


Features :

  • Compact design vs high power
  • Best heat Dissipation
  • Anodized Aluminium improves dielectric strength
  • Non-Inductive resistors are available
  • Variety of Termination is available
  • Insulations Testing up to 2KV for 1 M
TYPE WATT RANGE TUBE SIZE LEAD(MM)
E-AE 10W 0.01E-5K 40X20X11 LUG
E-AE 25W 0.01E-10K 50X30X15 LUG
E-AE 50W 0.01E-15K 72X30X15 LUG
HIGHER SIZES AVAILABLE ON REQUEST

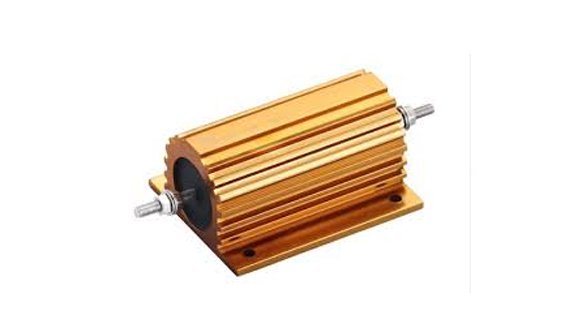

ALUMINIUM HOUSED SCREW LEAD WIRE WOUND RESISTOR- E AES

TYPE WATT RANGE TUBE SIZE LEAD(MM)
E-AE 10W 0.01E-5K 40X20X11 SCREW
E-AE 25W 0.01E-10K 50X30X15 SCREW
E-AE 50W 0.01E-15K 72X30X15 SCREW
HIGHER SIZES AVAILABLE ON REQUEST

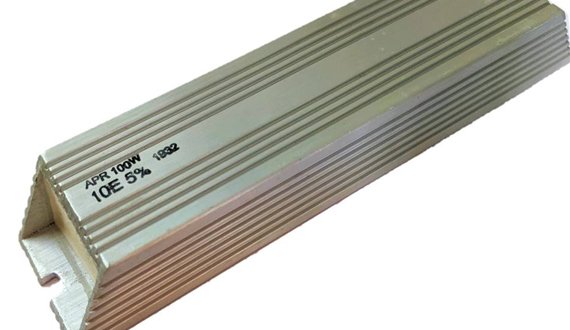

ALUMINUM HOUSED DYANAMIC BRAKING RESISTOR – DBR

E-DBR series is a spiral wire wound based on ceramic tube with aluminium housing. Which is mainly get used in VFD Drive panels.

Features :

  • Super heat dissipation
  • Suitable for harsh environment
  • High Insulation Class & Safer Construction
  • Excellent anti-vibration capability.
TYPE WATT H X W X L RANGE LEAD
DBR40 40W 25X38X75 1E-10K COPPER
DBR60 60w 25X38X75 1E-10K COPPER
DBR8O 80w 25X38X135 1E-10K COPEER
DBR100 100W 25X38X165 1E-10K COPPER
DBR120 120W 25X38X190 1E-10K COPPER
DBR150 150W 25X38X215 1E-10K COPPER
DBR200 200W 33X63X165 1E-10K SS
DBR300 300W 33X63X215 1E-10K SS
DBR400 400W 33X63X265 1E-10K SS
DBR500 500W 33X63X335 1E-10K SS
DBR750 750w 40X80X265 1E-10K SS
DBR1000 1000W 40X80X330 1E-10K SS
DBR1200 1200W 40X80X400 1E-10K SS
DBR1500 1500W 40X80X495 1E-10K SS
HIGHER SIZES AVAILABLE ON REQUEST
MATERIAL SPECIFICATION TECHNICAL SPECIFICATIONS
Resistor Wire: Ni/Cr , FeCrAl Power Range: 40W – 1500W +
Winding Tube: Ceramic Voltage range: <1.2KV
Housing: Sink Aluminium Dielectric Strength: AC 3KV 50Hz 5S
Terminal: Wire / Copper / SS Temp Coefficient <300 ppm / ‘C
